Solstice PRE ORDER - Expected delivery June 2024

from $1,100.00

Lively on the climbs, stable in the chunk. The Solstice is our do-it-all steel hardtail. Handmade in Marin County, CA.

  • 130mm fork

  • 65° HTA

  • 29in wheels

  • All around geometry

Before getting your order started, scroll down to calculate your size, make a color choice, and browse the available build kits. Size, color, and add-ons are selected during checkout.

Build:
Payment:
Quantity:
Continue to checkout

Geometry

  • A 65° HTA combined with a 130mm fork finds the balance between precision and stability

  • Tall stack height combined with a steep seat tube angle give you a strong, comfortable riding position

  • Mid-height bottom bracket gives you control on technical climbs and allows you to hop, pop, and manual the descents

  • Reach is long, but not too long

  • Clearance for 29x2.6in tires

Solstice V2 S S+ M M+ ML ML+ L L+ XL XL+
Height 5'6 5'7 5'8 5'9 5'10 5'11 6'0 6'1 6'2 6'3
rec. saddle height 650-680 675-695 690-710 705-725 720-745 735-760 750-775 765-790 785-810 800-830
Stack [mm] 619 619 619 628 637 646 656 656 665 665
Reach [mm] 420 430 440 450 460 470 475 485 495 505
Effective TT 593 603 613 626 637 650 658 668 680 690
Seat Tube Length 380 420 440 440
HTA 65°
Wheelsize 29
Travel 130mm
STA 74° 74.5°
Wheelbase 1147 1157 1167 1182 1201 1215 1229 1239 1265 1275
Chainstay 425 430 440
BB Drop 56
Max Dropper (approx) 150 180 180 200 220
Min Steerer Length 160 160 190 200 210

Our digital design process and small-batch production allow us to offer an unprecedented sizing range. Note: All geometries are un-sagged.

Use your height to find your baseline size:

  • If you have long legs and a short torso, consider sizing down

  • If you are all torso and arms, consider sizing up

  • If you prefer a more stable ride, consider sizing up

  • If you prefer a more nimble bike, consider sizing down

  • More info here

Sizing Tips:

  • Small sizes have a 120mm travel fork in order to keep handlebar heights exactly where they need to be

  • We suggest sizing around 50mm stems

  • Our stack height is higher than other brands. As a result, less spacers are needed to get the handlebars into your ideal position. This keeps the cockpit feeling roomy

Color

Every Neuhaus bike is available in these 18 color options. Powder coating is done locally in the Bay Area, CA. Custom power coat colors are available for an additional $300. Wet paint is not offered at this time for cost, time, and environmental reasons.

Build Kit Details

  • Fork: Bomber Z2

    Wheels: Astral Serpentine alloy rims, Astral Approach hubs by White Industries

    BB: Wheels MFG

    Headset: Cane Creek

    Stem: E13 Base 35 50mm

    Handlebars: E13 Base 35 Aluminum, 35mm rise

    Grips: PNW Loam

    Seat post clamp: Suberb

    Seat post: PNW Rainer with PNW Puget Lever

    Brakes: SLX 4 piston

    Rotors: Shimano RT66 180

    Cranks: Shimano SLX

    Drivetrain: SLX with 32t chainring and Deore 12s 10-51 cassette.

    Saddle: WTB Koda steel medium

    Tires: Your choice (included in price of any complete bike)

    Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

    Parts subject to change without notice.

  • Fork: Bomber Z2

    Wheels: Astral Serpentine alloy rims, Astral Approach hubs by White Industries

    BB: Wheels MFG

    Headset: Cane Creek

    Stem: E13 Base 35 50mm

    Handlebars: E13 Base 35 Aluminum, 35mm rise

    Grips: PNW Loam

    Seat post clamp: Suberb

    Seat post: PNW Rainer with PNW Puget Lever

    Brakes: Sram G2 R

    Rotors: Sram Centerline CL 180

    Cranks: GX Eagle

    Drivetrain: GX Eagle with 32t chainring and GX Eagle 10-52 cassette.

    Saddle: WTB Koda steel medium

    Tires: Your choice (included in price of any complete bike)

    Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

    Parts subject to change without notice.

  • Fork: MRP Ribbon SL

    Wheels: Astral Serpentine alloy rims, Astral Approach hubs by White Industries

    BB: Wheels MFG

    Headset: Cane Creek

    Stem: One Up

    Handlebars: One Up carbon

    Grips: PNW Loam

    Seat post clamp: Engin 2 bolt

    Seat post: PNW Loam with PNW Loam Lever

    Brakes: Shimano XT 4 piston

    Rotors: RT MT800 180

    Cranks: Shimano XT

    Drivetrain: XT with 32t chainring and Shimano XT 12s cassette.

    Saddle: WTB Koda steel medium

    Tires: Your choice (included in price of any complete bike)

    Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

    Parts subject to change without notice.

  • Fork: MRP Ribbon SL

    Wheels: Astral Serpentine alloy rims, Astral Approach hubs by White Industries

    BB: Wheels MFG

    Headset: Cane Creek

    Stem: One Up

    Handlebars: One Up carbon

    Grips: PNW Loam

    Seat post clamp: Engin 2 bolt

    Seat post: PNW Loam with PNW Loam Lever

    Brakes: TRP Trail Evo

    Rotors: TRP CL 2.3 180

    Cranks: Sram XO1 Eagle

    Drivetrain: Sram Eagle XO with 32t chainring and Sram Eagle XO cassette.

    Saddle: WTB Koda steel medium

    Tires: Your choice (included in price of any complete bike)

    Price of the build kit includes installation of all parts. Your bike will be shipped / delivered to you ready to ride with some minor assembly.

    Parts subject to change without notice.

Every Detail Matters

Full Spectrum Sizing: Fit, handling characteristics, and frame stiffness are specifically tuned for each size (ALL 16!). Every size has specific tube diameters and butting profiles to achieve the same ride quality across the entire spectrum.

Cable Routing: Easy to maintain, noise free, cable routing system that looks and functions great. All bikes feature an exclusive weather-sealed 3D printed cable port system to keep water out and the frame rattle free.

Hydration Matters: Every size is carefully designed to maximize hydration capacity. An exclusive 3D printed bottle bracket allows for maximum dropper post insertion while still using normal bottle bolts.

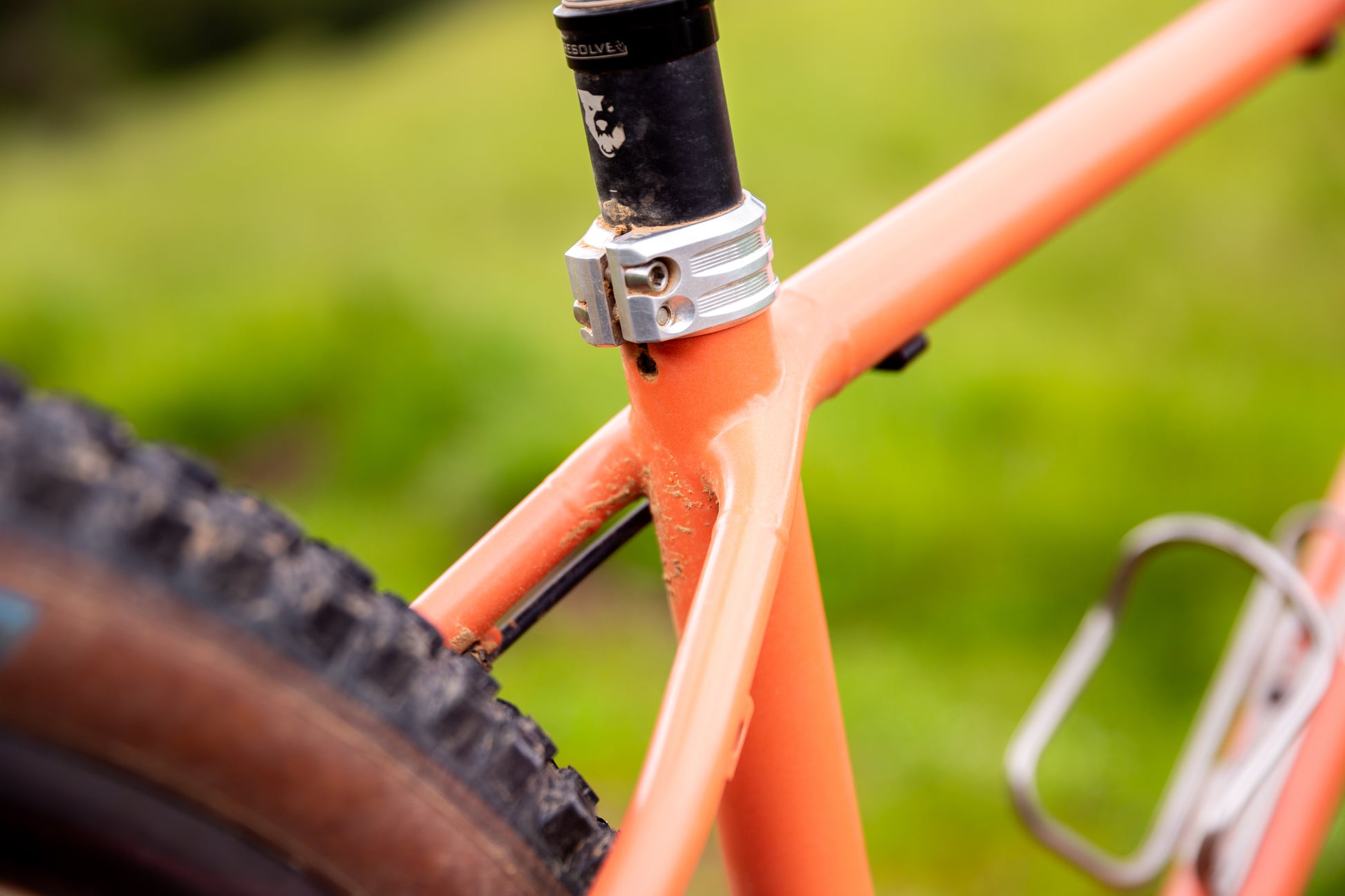

3D Printed Yokes: All frames feature custom 3D printed chainstay and seatstay yokes. These parts save weight, increase strength, and give the frames a unique look

Customization

There are a variety of customization options available:

ISGS tabs for attaching chain guards can be added during checkout for $150.

PF30 bottom bracket shell for use with eccentric bottom brackets can be specified during checkout.

Additional bosses for racks or water bottles are $25 each, and can be specified during checkout. Precise number and placement will be confirmed via email.

Specifications

Travel: 120/130mm

Wheelsize: 29 front / rear

Tire Clearance: 2.3-2.6in

Rear Axle: Boost 148x12

Bottom Bracket: Threaded T47 73

Headtube: Tapered IS42/52 (XL is EC44 ZS44)

Seatpost Diameter: 31.6mm

Brake Mount: IS 160, up to 180mm

Shift and Brake Cable Routing: External top tube

Dropper Routing: Internal downtube

Material: Blend of Air Hardening Velospec Tubing and Columbus
